This 90%–91% laminated white PDLC smart film is a precision-engineered semi-finished base material designed exclusively for professional glass deep processing — including laminated dimming glass and insulated hollow dimming glass fabrication. It is not intended for direct pasting or retrofit applications. With its ultra-high optical clarity, thermally stable laminated architecture, and industry-leading transmittance, it empowers glass processors to deliver premium privacy, daylight control, and aesthetic flexibility for architectural projects demanding both performance and visual integrity.
Ideal for B2B partners in architectural glazing, façade engineering, and smart building component manufacturing — this film integrates seamlessly into existing tempering and lamination lines while enabling differentiated end products with measurable energy, comfort, and design advantages.

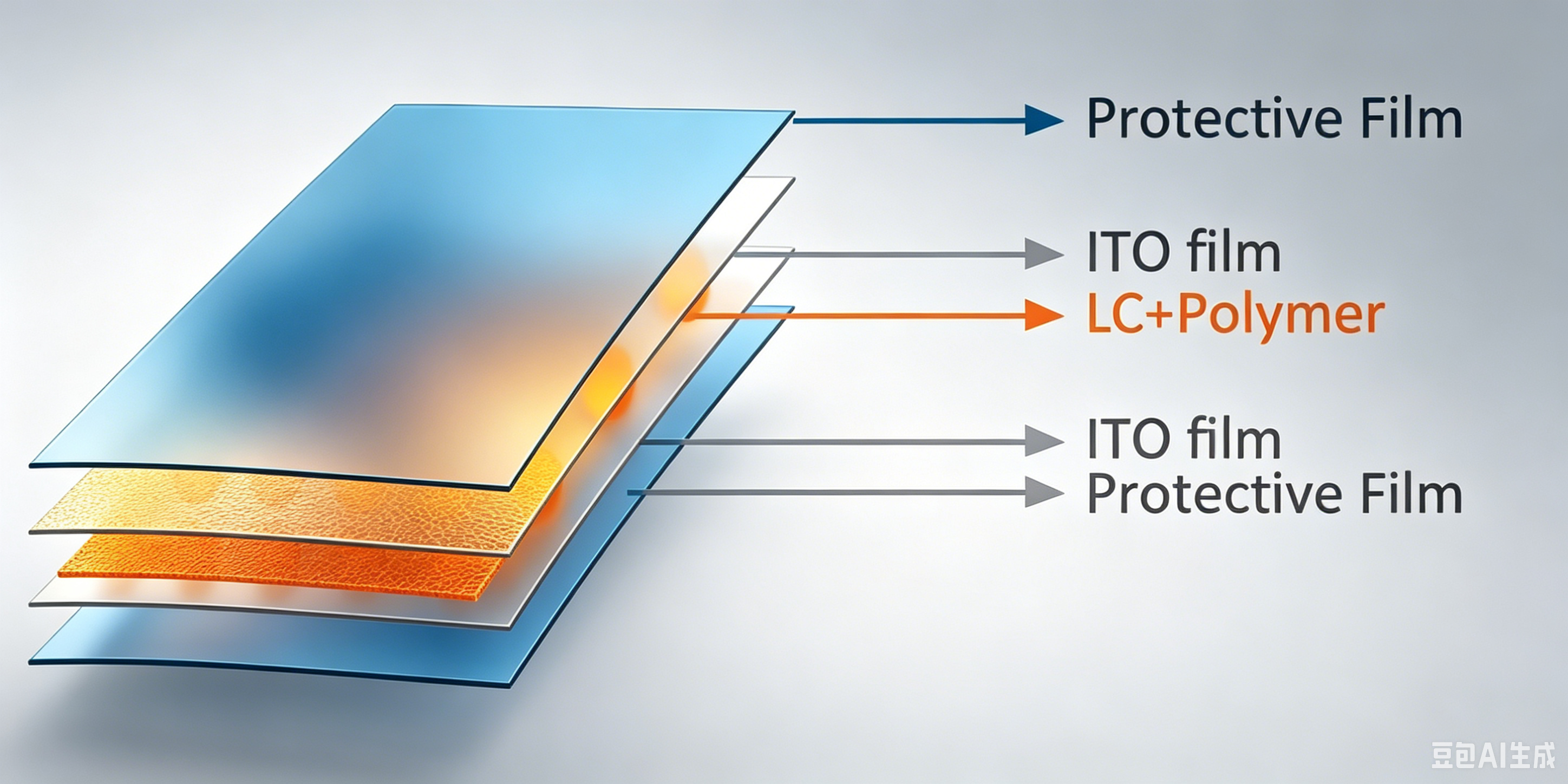

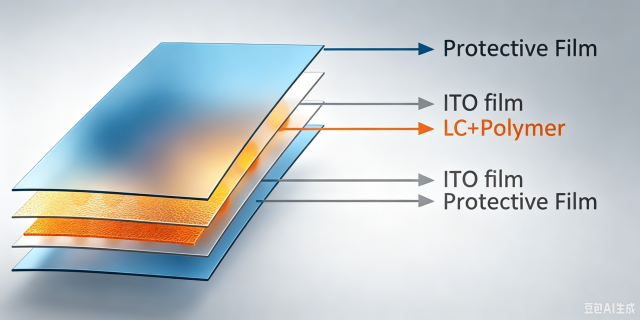

Integrated laminated construction prevents liquid crystal leakage during high-temperature glass lamination (up to 135°C), ensuring structural integrity, pressure resistance, and long-term reliability in finished insulating glass units.
90–91% ON-state light transmittance exceeds standard PDLC films by 3–5 percentage points — maximizing natural daylight penetration without compromising brightness or indoor ambiance.
Consumes only 10 W/m² when powered ON; zero energy draw in opaque OFF state. Supports wired wall switch, wireless remote, and dry-contact IoT interface for seamless integration into smart building ecosystems.
| Parameter | Specification |
|---|---|
| Product Type | Laminated Base Smart Film (for glass deep processing) |
| Raw Material | White PDLC Polymer Dispersed Liquid Crystal Film |
| Total Thickness | 0.37 mm |
| ON-state Light Transmittance | 90% – 91% |
| OFF-state Appearance | Uniform frosted / etched / opaque white |
| Optional Operating Voltage | 110V/60V AC, 220V/60V AC |
| Static Power Consumption | 10 W/m² (only energized at ON mode) |
| Response Time | < 50 ms (transparent ↔ opaque) |
| Control Solutions | Wired wall switch, wireless remote control, dry-contact IoT interface |
| Standard Roll Width | 1000 mm, 1200 mm, 1500 mm, 1800 mm, 2100 mm |
| Max Roll Length | Up to 50 meters per full roll |
| Factory Warranty | 2-year standard manufacturer quality warranty |
Contact our technical sales team for custom roll sizing, sample requests, and OEM support.
