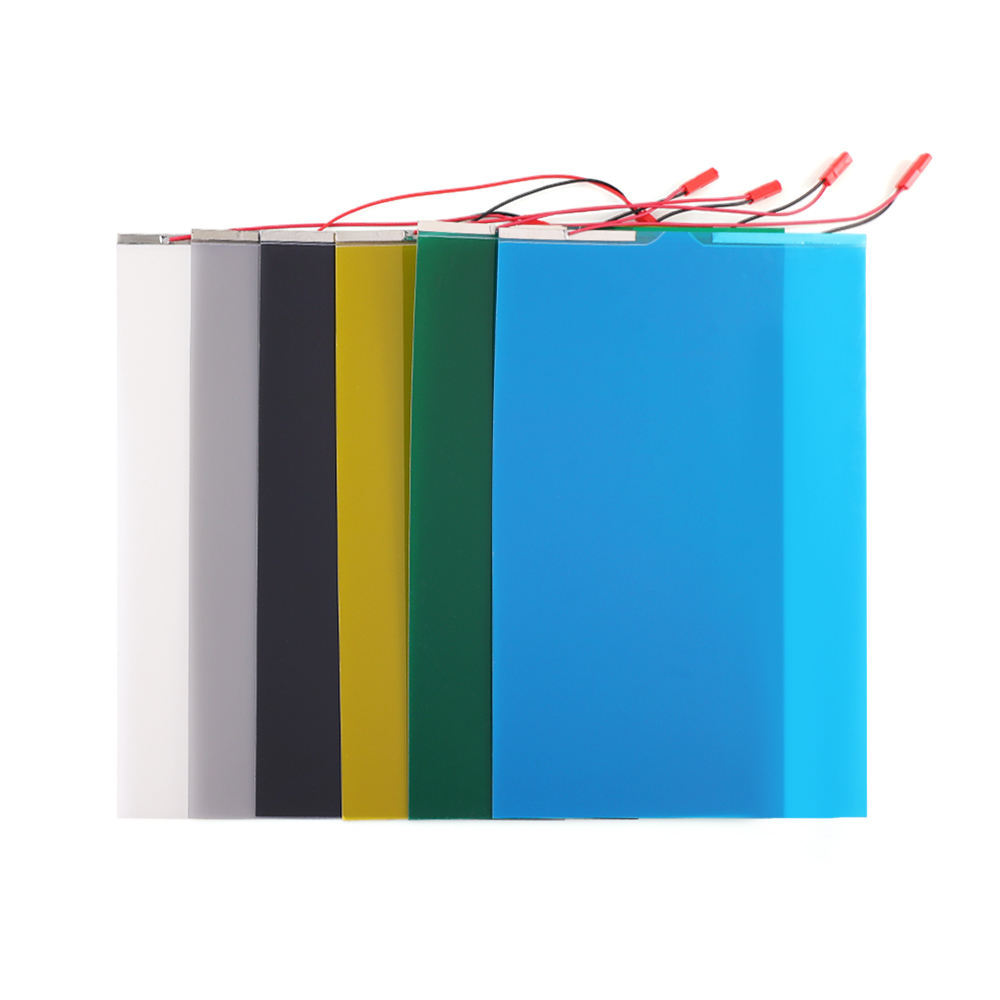

Color-Coated PDLC Smart Film is an economical, high-impact solution for achieving decorative colored smart glass without the premium cost of dye-based liquid crystal (DLC) technology. Built on a proven white PDLC base, it integrates a precision-laminated colored PET tint layer — delivering rich, uniform hues in red, green, blue, and yellow while preserving all core electro-optical performance.
Designed for B2B clients balancing aesthetics, functionality, and project budget, it enables office partitions, hotel feature walls, exhibition displays, and retail interiors to leverage dynamic privacy control with expressive color — accelerating ROI through lower material cost and simplified integration.
Up to 40% more affordable than DLC-colored smart film — same vivid color effect, zero compromise on switching speed, clarity, or reliability.
Fully retains standard PDLC performance: instant ON (transparent) / OFF (frosted opaque) switching, low power consumption, and robust durability.
Available in widths up to 2100 mm and rolls up to 50 m — ideal for large-scale architectural glass, modular partitions, and custom installations.
Dynamic privacy zones with color-matched branding — no structural retrofitting required.

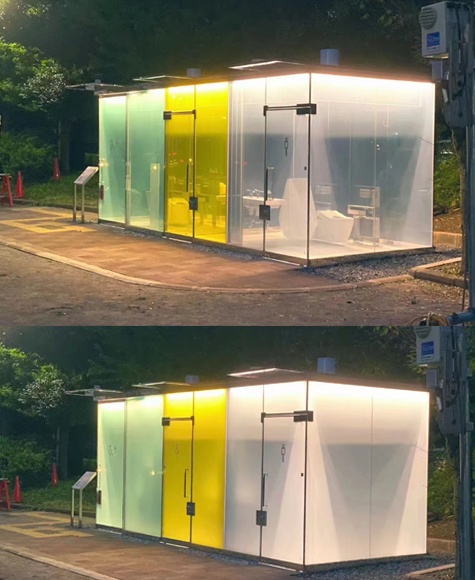

Feature walls, bathroom glass, lobby dividers — elevate ambiance with controlled color and light.
Interactive displays, branded storefronts, pop-up installations — color that commands attention and adapts on demand.
| Parameter | Specification |
|---|---|
| Product Type | Color-coated PDLC smart film |
| Raw Material | White PDLC polymer dispersed liquid crystal film + colored PET tint layer |
| Total Thickness | 0.38 mm |
| OFF-state Appearance | Uniform frosted / opaque Colored |
| Optional Operating Voltage | 110V/60V AC, 220V/60V AC |
| Static Power Consumption | 10 W/m² (only energized at ON mode) |
| Response Time | < 50 ms (transparent ↔ opaque) |
| Control Solutions | Wired wall switch, wireless remote control, dry-contact IoT interface |
| Standard Roll Width | 1000 mm, 1200 mm, 1500 mm, 1800 mm, 2100 mm |
| Max Roll Length | Up to 50 meters per full roll |
| Factory Warranty | 2-year standard manufacturer quality warranty |
DLC uses dyed liquid crystal molecules — requiring complex formulation and high-cost production. Our color-coated version laminates a colored PET film onto standard PDLC, achieving comparable visual impact at significantly lower cost and broader compatibility.
Yes — the film is easily cut with standard utility tools. Custom die-cutting, CNC routing, and edge finishing services are available upon request for volume orders.
Dual-voltage drivers (110V/220V AC) are standard. We also offer DC-compatible versions (24V/48V) for smart building integrations and battery-backed systems.
Get technical support, sample kits, and volume pricing within 24 business hours.
